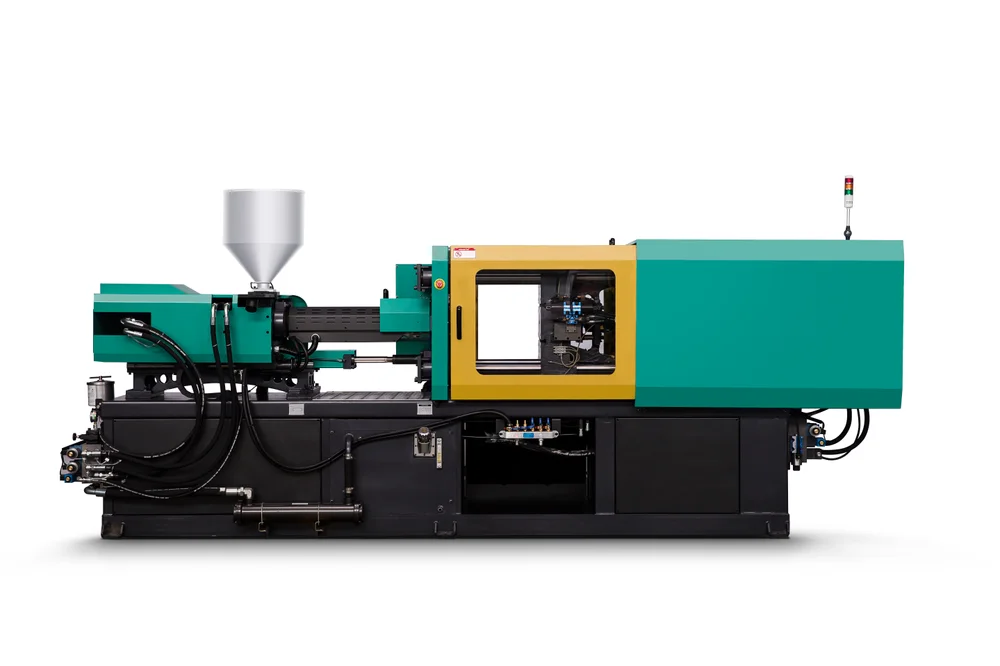

LOG-S8 130

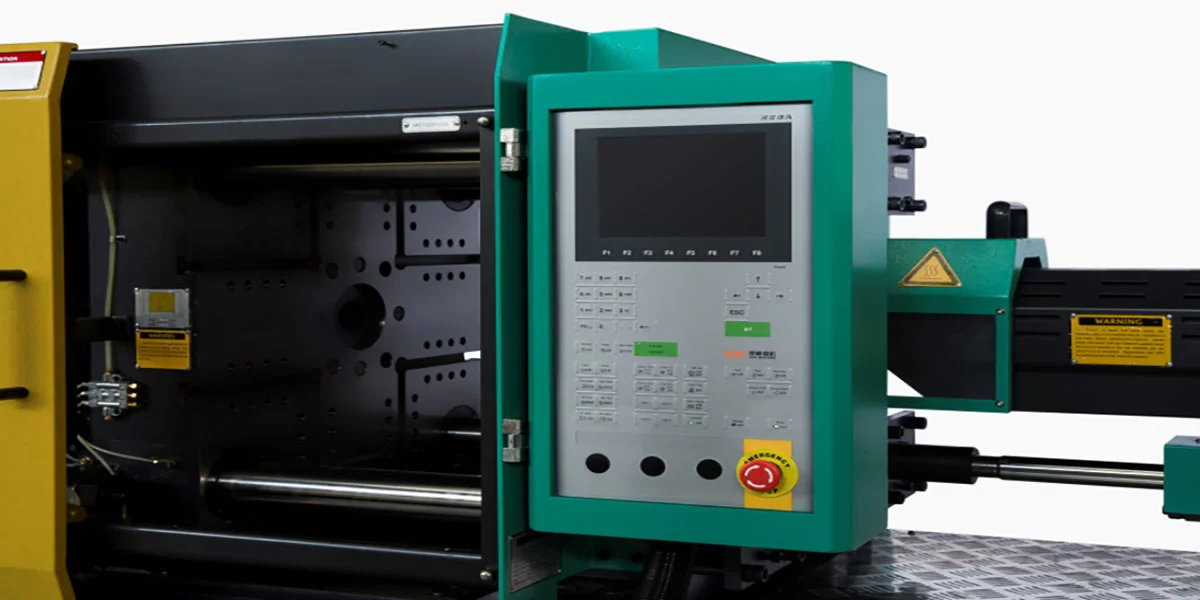

The LOG-S8 130 is an affordable, high-precision, high-speed plastic injection molding machine featuring a unique, rigid third-platen flange design with a highly adjustable L/D ratio and a user-friendly, smart Industry 4.0 KEBA control system that manages all operational aspects.
It includes a 5-point dual-toggle mechanism for high force amplification and a robust, high-power servo-hydraulic system that efficiently generates 130 metric tons of clamping force while reducing energy consumption by up to 80%.

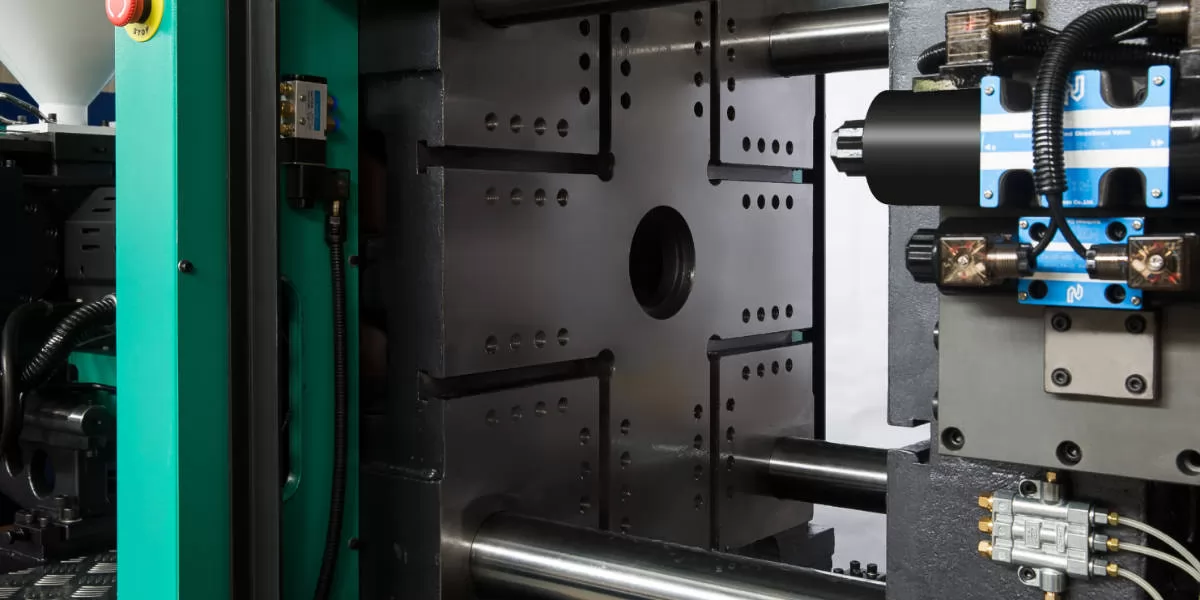

Its modular design enables quick and easy mold changes, and the use of well-known international components simplifies maintenance and minimizes downtime.
The LOG-S8 130 is ideally suited for producing high-quality products across various industries, including food packaging, household products and appliances, electronics, automotive, pipe fittings, toys, gifts, and other sectors.
| Shot volume(PS) | Screw diameter | Clamping force | Opening stroke | Tie-Bar Distance | Mold thickness | Pump motor |
|---|---|---|---|---|---|---|
| 239g | 42mm | 1300kn | 380mm | 410 x 410(mm) | 150-430(mm) | 18.2kw |
Click here to open gallery
Click here to open gallery
Effect Test Cases
Test Case
Test condition
Hydraulic pump:
Machine settings: Each machine had the same settings
Processing time: Several hours
The test results show an energy savings of 45.5% when using the S8 servo system compared to a similar-sized fixed displacement system IMM with up to 80% energy savings.
| Plastic Machine Sampling Analysis | 250T Fixed Displacement MM | 250T Variable Displacement IMM | 250T Servo System IMM |
|---|---|---|---|
| Test Time | 2 | 2 | 2 |
| Oil Temperature | 55 | 45 | 40 |
| Close Mold | 1.8 | 1.8 | 1.6 |
| Open Mold | 1.4 | 1.4 | 1.4 |
| Injection | 1.5 | 1.2 | 1 |
| Hold Pressure | 0.5 | 0.4 | 0.2 |
| Charging | 2.2 | 2.2 | 1.8 |
| Production Cycle | 7.4 | 7 | 6 |
| Total Shot | 973 | 1028 | 1200 |
| Power Consumption per hour (kW/h) | 12.3 | 10.6 | 8.8 |
| Annual Power Consumption (kW) | 66,420 | 57,420 | 47,520 |
Note: The data above is based on running the machine for 18 hours per day, 25 days per month, and 300 days per year.
Note: *The tonnage shown in the model number is in metric tons, equivalent to approximately 1.1 US tons. Please note when selecting a machine for your application.
The LOG S8 130 Ton Injection Molding Machine is a precision-engineered servo-driven model designed for efficiency, speed, and reliability. With advanced control technology and a durable clamping system, it delivers consistent, high-quality molding results across a wide range of plastic products.
The LOG S8 130 Ton Injection Molding Machine price depends on factors like configuration, automation level, and additional options. LOG offers competitive pricing to ensure maximum value and performance. Contact our sales team for an accurate quote based on your production requirements.
Yes, the LOG S8 130 Ton Injection Molding Machine is available for sale in the USA through our authorized LOG distributors and direct sales network. We provide complete support including setup, training, and after-sales service.
This machine features a servo hydraulic system, energy-saving performance, precise injection control, and an intelligent user interface. It offers improved production efficiency, reduced energy consumption, and consistent molding accuracy, making it ideal for industrial and consumer applications.
You can easily purchase or request a quotation by contacting LOG’s official sales representatives or filling out our inquiry form online. Our team will assist you with specifications, pricing, and delivery options customized to your production needs.
