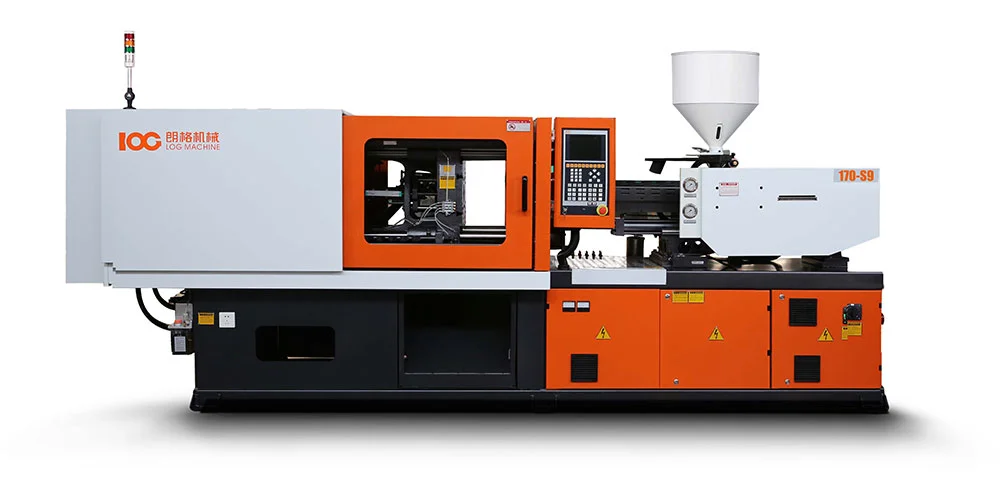

S9 650 ton Servo Injection Molding Machine
eaton machine
m3
m2
Drive and control unit 5
Drive and control unit 2
P9
P2-3
P2-2
P2-1
LOG-S9 650

LOG-S9 650* ton Servo Injection Molding Machine

The LOG-S9 650 ton is an affordable, high-precision, high-speed plastic injection molding machine that focuses on operational efficiency and productivity.

Its modular design, extensive tie-bar space, unique rigid third-platen flange, and highly adjustable ejector and L/D ratio enable a wider range of mold sizes, allowing for quick and easy mold changes. The new dual-cylinder injector provides increased pressure, resulting in improved surface finish and dimensional accuracy.

The 5-point dual-toggle mechanism has been redesigned to improve durability while applying high clamping forces directly, thereby reducing cavity deformation. The enlarged high-power servo-hydraulic system efficiently produces a clamping force of 650 metric tons. Its increased flow improves operating speed and cuts energy consumption by up to 80%.

The user-friendly control system handles all operational functions and utilizes well-known international components, facilitating easier maintenance and reducing downtime.

The LOG-S9 650 ton is ideally suited for producing high-quality products across various industries, including food packaging, household products and appliances, electronics, automotive parts, pipe fittings, toys, gifts, and other sectors.

Specifications of LOG-S9 650

Request Quote

Platen Dimensions

Moving

LOG650 S9 Moving

Sprue Picker Mounting

LOG650 S9 Sprue
Shot weight(PS)Screw diameterClamping forceOpening strokeTie-Bar DistanceMold thicknessPump motor
625g58mm6500kN920mm970 x 900(mm)380-1010(mm)50.2 + 50.2kW

Click here to open gallery

Clamping Unit

LOG Clamping Unit

  • 1. The redesigned platens provide greater rigidity and expanded tie bar space, allowing for bigger molds and wider applications, resulting in improved cost-effectiveness.
  • 2. The optimized 5-point dual-toggle mechanism applies clamp force more directly to the molds, reducing cavity deformation and improving molding precision while providing efficient, energy-saving high force amplification.
  • 3. The moving and third plates’ pin hole limits relative movements, and its extended bearing distributes forces more evenly, leading to less wear and better rigidity and molding system precision.
  • 4. The modular ejector was repositioned and redesigned to offer more maintenance space for faster, easier disassembly and installation, and to improve parts ejection efficiency.
  • 5. The S9's operational efficiency has been improved due to the anti-tilting design of the moving plate’s runner and the extended guide bearing.
Injection Unit

LOG Injection Unit

  • 1. Injection unit adopts double-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.
  • 2. Enlarged-cylinder, adopting two-cylinder design, effectively prevent the adhesive- material leaking phenomenon caused by the machine vibration or other reasons while the nozzle is under high-speed operation.
  • 3. The new graphite-impregnated steel bushings improve wear resistance through more effective use of lubrication, reducing the need for lubricating oil and enhancing the cleanliness of the injection part.
  • 4. Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.
  • 5. Bridge-style design, for different L/D ratio plasticizing parts.

Click here to open gallery

DRW_LOGIMM ServoSchematic
LOG Servo Drive
Servo Drive Features

LOG Servo Drive Features

  • The high-speed bus communication measures actual pressure and monitors multiple signals, driver output current, and load rate in real-time.
  • The medium-sized syringe with dual or multi-pump confluence uses advanced servo control technology to accurately synchronize the servo and hydraulic pump, ensuring smooth integration of multiple hydraulic pumps.
  • The enlarged power units increase pump flow and operating speed.
Electric power consumption

Effect Test Cases

LOG Effect Test Cases

The core advantages of LOG-S9
  • The increased width of high-rigidity platen produces a super-large tie bar space, allowing installation of bigger molds. Therefore, the molding system is more cost-effective for its wider applications.
  • The second advantage is the improvements at injection unit. The double-cylinder design generates super-large injecting pressure. It facilitates the process of parameters control, and improves the surface finishing of products, both interior quality and dimensional precision.
  • The third advantage is the enlarged power units, which increases pump flow and operating speed.

Test product: snack box
Material: PP
Weight: 21g
Wall thickness: 0.43mm
2 Cavities

Test condition
Three sets machines
Same oil pump displacement
Same settings
Processing several hours
Processing several hours
Oil temperature hold on 40 degrees

Images And Video

LOG-S9 Images and Video

Note: *The tonnage shown in the model number is in metric tons, equivalent to approximately 1.1 US tons. Please note when selecting a machine for your application.

Frequently Asked Questions

The LOG S9 650 ton injection molding machine offers high precision, energy-efficient servo-driven systems, fast cycle times, and advanced control technology. It is ideal for producing large plastic parts with consistent quality and reduced operational costs.

This model is perfect for automotive components, industrial containers, household products, large appliance parts, and other high-volume manufacturing applications requiring strength and dimensional accuracy.

The price of a LOG S9 650 ton injection molding machine varies depending on specifications, configuration, and optional features. For the most accurate quote, it’s best to contact LOG sales team or an authorized distributor directly.

Yes, the LOG S9 650 ton injection molding machine is available for sale through authorized LOG distributors and partners across the United States, including service and support options.

Absolutely. LOG offers full installation, training, maintenance, and technical support to ensure smooth operation and long-term reliability of the 650 ton injection molding machine.
